S600DL | Large-Format Dual Laser SLS 3D Printer
S600DL is one of the largest industrial 3D printers with dual lasers and dynamic focusing, ideal for high-efficiency production in automotive, aerospace, and sculpture applications. Coupled with an all-in-one built-in powder recovery system the PPS, the printer ensures clean and efficient SLS 3D printing.
- High Efficiency with Dual Lasers: Two powerful lasers work simultaneously to reduce printing time for large or complex parts.
- Dynamic Focusing System: Ensures consistent laser precision across tall or detailed prints, improving part accuracy and surface quality.
- Large Build Volume (600x600x800mm): Ideal for industrial-scale applications like automotive and aerospace—capable of printing large components in one go.
- Stable Industrial-Grade Structure: Rigid, enclosed design ensures long-term stability, consistent performance, and safe operation in factory environments.
- Optimized for Continuous Production: Supports high powder reuse rates and efficient powder handling, making it cost-effective for batch production.
Get A Free Quote
Main Features of S600DL

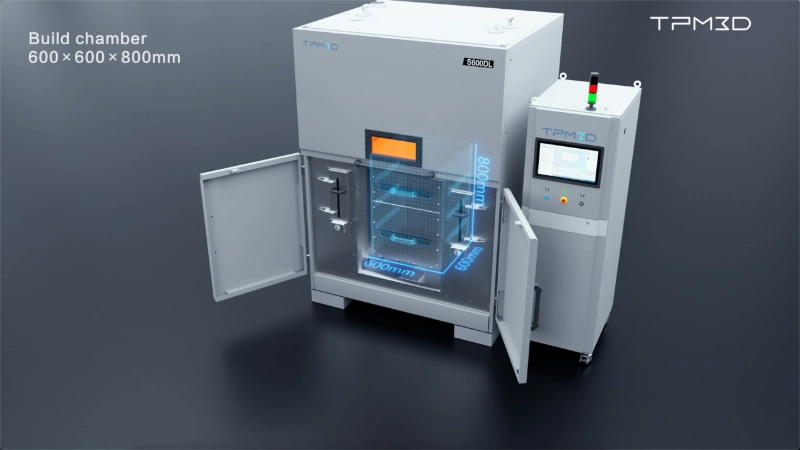

- Massive Build Volume: 600×600×800 mm chamber
- Dual 140W CO₂ Lasers: Independent dual-laser system for faster scanning and optimized throughput.
- 3-Axis Dynamic Focusing: Maintains consistent focus across all areas and heights of the print bed.
- High-Speed Scanning: Maximum scanning speed reaches 25,000 mm/s for rapid layer processing.
- Adjustable Layer Thickness: Ranges from 0.06 mm to 0.2 mm to balance detail and build speed.
- Active Cooling Technology: Accelerates cooling efficiency and reduces powder aging for more consistent performance.
- Built-In Nitrogen Generator: Reduces auxiliary equipment needs and lowers operating costs.
S600DL Data Sheet
| Building Chamber size X*Y*Z(mm) | 600*600*800 |
| Dimension of Main Machine W*D*H(m) | 1.65*1.52*2.36 |
| Dimension of Control Unit W*D*H(m) | 0.60*1.06*1.92 |
| Weight of Main Machine (kg) | 1750 |
| CO2 Laser Powder (W) | 140*2 Double Laser |
| Focusing | 3-axis, dynamic focusing |
| Building Speed (mm/h) | 10~25 |
| Layer Thickness (mm) | 0.06~0.2 Adjustable |
| Recommended Values 0.15 | |
| Diameter of Laser Beam (mm) | 0.42 |
| Maximum Scanning Speed (mm/s) | 25000 |
| Maximum Operating Temperature (℃) | 230/160 |
| Powder Pyrometer Long Term Stability (℃/Year) | 0.1 |
| Powder Feeding Type | Powder discharged upside |
| Powder fed both sides | |
| Data Format | STL |
| OS | Windows 10.0 |
| Data Processing Software | Voxeldance Additive -TPM3D Version |
| Options for Color of SLS Parts | White, Black, or other colors |
| Auto Lock for Platform | Yes |
| Lifting Trolley | Manual |
| Active Cooling | Yes |
| Thermal Management for Control Cabinet | Chiller |
| Powder Recoater | Smart blade |
| Electrical Protection | PL-e Dual-channel security control |
| Nitrogen Generator | Integrated |
| Power | 380V, 3P/N/PE, 32A, 50/60Hz, Avg 4kW |
Versatile Applications Across Industries
The Large Industrial SLS 3D Printer S600DL is trusted by professionals across a wide range of industries for its precision, scalability, and material compatibility. Whether you’re producing functional prototypes or end-use parts, the S600DL adapts to your needs:
- Medical – Produce custom-fit orthotics, surgical guides, and medical device components with high accuracy.
- Aerospace & Drones – Print lightweight yet durable parts for structural and aerodynamic testing.
- Automobiles – Ideal for prototyping and low-volume production of functional automotive components.
- Education & Arts – Support advanced research, sculpture, and creative experimentation with large, detailed prints.
- Electronics – Manufacture durable casings, connectors, and complex parts for consumer and industrial electronics.
- And more – From tooling to robotics, the S600DL is built to support innovation wherever it’s needed.
SLS Printing process of S600DL
Broad Material Compatibility
The S600DL 3D printer is engineered for versatility, capable of processing a broad portfolio of high-performance thermoplastics—from standard Nylons like PA 11, PA 12, and PA 6X to PP, TPU, PBT, and PS. It also supports reinforced materials, including carbon and glass composites, enabling the production of parts that demand enhanced strength, durability, or heat resistance.

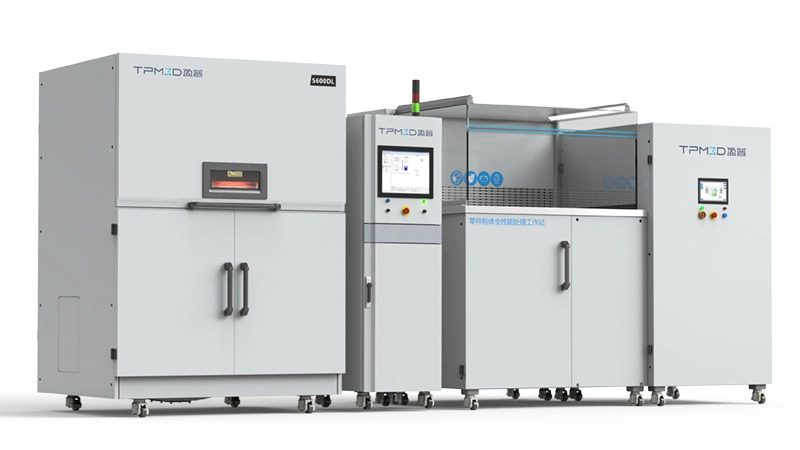

Seamless Integration with PPS for Cleaner, Smarter Workflow
The S600DL 3D printer works seamlessly with TPM3D’s Part & Powder Processing Station (PPS), an integrated solution designed to streamline post-processing and powder handling. PPS minimizes powder leakage and eliminates dust pollution in the workspace, creating a cleaner and safer environment. By optimizing powder recovery and reducing manual handling, it significantly lowers production time and operational costs—making your workflow more efficient from print to finish.
