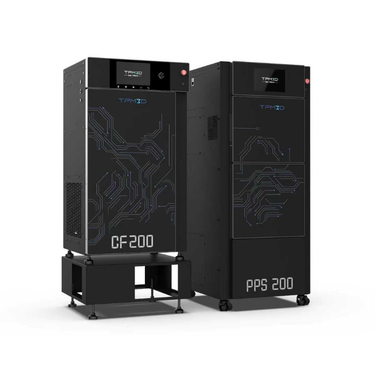

CF200+PPS200
A compact SLS solution designed for flexible production, rapid prototyping, and lab environments.
- Build Chamber Size (X×Y×Z): 200×200×320 mm
- Print Speed: 0.5-0.8 L/h*
- Laser: 30W Fiber Laser
- Supported Materials: PA11, PA12, PA12 GF, PA12 CF, TPU
Get A Free Quote
CF200+PPS200 Specifications
| CF200 Specifications | CF200 |
| Laser | 30W Fiber Laser |
| Focus | F-θ Field Lens |
| Build Chamber Size (X×Y×Z) | 200×200×320 mm |
| Layer Height | 0.1 mm |
| Print Speed | 0.5-0.8 L/h* |
| Powder Supply Bin Volume | 15 L |
| Powder Supply and Recoater | Right Side Top Feed, Dual Side Recoating |
| Material | PA11, PA12, PA12 GF, PA12 CF, TPU |
| Virgin Powder Ratio | 20-40% |
| Powder Particle Diameter | 20-60 μm (Recommended) |
| Working Temperature | 18-28 °C |
| Humidity Requirements | 20-50% RH |
| N₂ Protection | Optional |
| Security Standard | CE |
| Dimensions (L×W×H) | 700×625×1350 mm |
| Weight | 130 kg |
| Power | 220V AC / 50Hz |
| Pedestal Dimensions (L×W×H) | 720×645×335 mm |
| Pedestal Weight | 16 kg |
PPS200 Specifications
| Specifications | PPS200 |
| Auto-Depowdering | Yes, via Rotating Basket |
| Basket Rotation Speed | 60-80 rpm |
| Auto-Sieving | Yes |
| Sieve Vibration Force | 55 kg |
| Auto Powder Mixing | Yes |
| Rotation Speed Mixer | 120 rpm |
| Mixer Volume | 16 L |
| Auto Powder Supply | Yes |
| Powder Supply Method | Automatically Supplied via Pipelines |
| Dust Suppression | Negative Pressure Dust Collection System |
| Safety Standard | CE |
| Operation Screen | 10″Touchscreen，1080P Resolution |
| Dimensions | 700×800×1685 mm |
| Weight | 160 kg |
| Power | 220V AC / 50Hz |
| Printers Supported | Numerous ** |
