P550DL | Large-Format Dual Laser SLS 3D Printer
P550DL is a large scale 3D printer featuring dual high-power lasers and dual dynamic focusing systems. As the largest model in the P series, it’s engineered for efficient, industrial-grade production of complex parts in aerospace, automotive, electronics, footwear industries, and more.
- Dual High-Power Lasers
- Large Build Chamber (550×550×850mm)
- Dual Dynamic Focusing Systems
- Compact Footprint, Industrial Performance
- Simplified Operation
Get A Free Quote
Main Features of large format 3D Printer P550DL
- Large Build Volume: 550×550×850 mm chamber, built for producing large format parts in a single print cycle.
- Dual High-Power Lasers: Independent scanning system boosts build speed and efficiency by over 45%.
- Precision Dynamic Focusing: Dual-axis focus adjustment ensures uniform energy delivery, even for tall and detailed builds.
- Compact Industrial Design: A space-efficient large scale 3D printer built to handle demanding production environments.
- Optimized Workflow: High powder reuse rates and stable performance for continuous manufacturing needs.
- Easy Maintenance: Modular components and clear UI simplify maintenance, reducing downtime and operating costs.
Large Format 3D Printer P550DL Data Sheet
| Building Chamber size X*Y*Z(mm) | 550*550*850 |
| Dimension of Main Machine W*D*H(m) | 1.85*1.49*2.32 |
| Weight of Main Machine (kg) | 1,600 |
| CO2 Laser Powder (W) | 140*2 Double Laser |
| Focusing | 3-axis, dynamic focusing |
| Building Speed (mm/h) | 10~25 |
| Layer Thickness (mm) | 0.06~0.2 Adjustable |
| Recommended Values 0.15 | |
| Diameter of Laser Beam (mm) | 0.4 |
| Maximum Scanning Speed (mm/s) | 22,000 |
| Maximum Operating Temperature (℃) | 230/160 |
| Powder Pyrometer Long Term Stability (℃/Year) | 0.1 |
| Powder Feeding Type | Powder discharged upside, |
| Powder fed both sides | |
| Data Format | STL |
| OS | Windows 10.0 |
| Data Processing Software | Voxeldance Additive -TPM3D Version |
| Options for Color of SLS Parts | White, Black, or other colors |
| Auto Lock for Platform | Yes |
| Lifting Trolley | Manual |
| Active Cooling | Yes |
| Thermal Management for Control Cabinet | Room temperature air cooling |
| Powder Recoater | Blade |
| Electrical Protection | PL-d Single-channel security control |
| Nitrogen Generator | Integrated |
| Power | 380V, 3P/N/PE, 32A, 50/60Hz, Avg 4kW |
Get Free Quote of Large Format 3D Printer P550DL
See how this large format 3D printer can transform your production capabilities—contact us today.
Versatile Applications Across Industries
The P550DL large scale 3D printer is built to meet the needs of demanding industrial applications. Its advanced features and large print capacity make it a versatile solution across many sectors:
- Medical – Produce surgical models, orthotics, and patient-specific parts with precision and safety.
- Aviation – Create lightweight, functional parts for testing, prototyping, and end-use applications.
- Automobiles – Accelerate vehicle development with rapid prototyping and durable custom components.
- Education & Creative – Support large format prototyping, artistic models, and research projects.
- Electronics – Manufacture complex internal parts, durable housings, and design prototypes.
- And more – From footwear to electronics, the P550DL adapts to the evolving needs of large scale manufacturing.
Broad Material Compatibility
The P550DL is compatible with a wide range of industrial-grade thermoplastics and composites, including Nylon 11, Nylon 12, Nylon 6X, TPU, PP, and carbon/glass reinforced materials. Whether you’re producing rigid parts or flexible prototypes, this large-scale 3D printer delivers dependable results.
Seamless Integration with PPS for Cleaner, Smarter Workflow

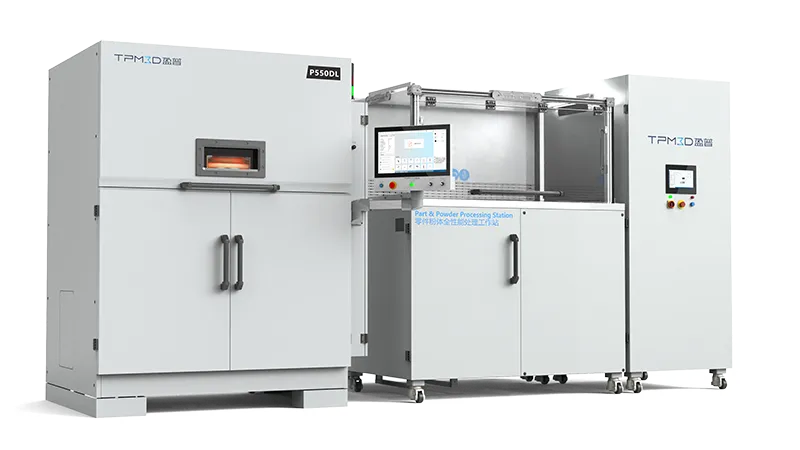

Fully compatible with TPM3D’s Part & Powder Processing Station (PPS), the P550DL ensures dust-free post-processing and efficient powder recovery. PPS reduces labor costs, keeps the workspace clean, and improves overall production speed—perfect for scaling up your large format 3D printing operations.
