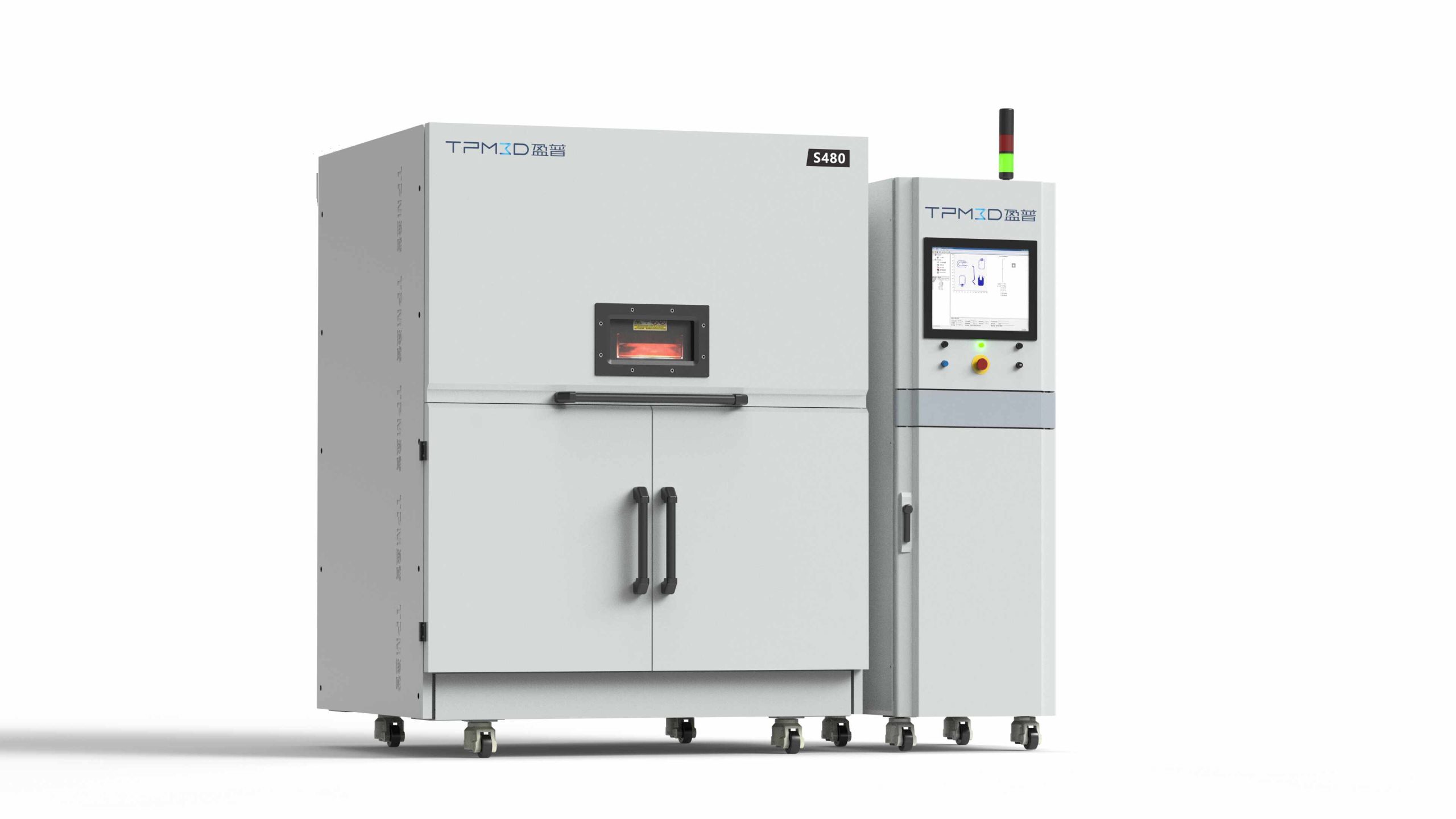

S480 | High-Precision SLS 3D Printer
The S480 is a versatile SLS 3D printing system designed for high accuracy, stable performance, and efficient production.
- 3-Axis Dynamic Focusing: Maintains consistent laser precision across the entire build area, ensuring superior part quality.
- High Build Efficiency: Printing speed of 10–25 mm/h with a scanning speed up to 21,000 mm/s.
- Spacious Build Chamber (480×480×600 mm): Suitable for producing complex geometries and large components in one run.
- Efficient Powder Supply: Top output with dual-side feeding for continuous and cost-effective operation.
Main Features of S480
The S480 selective laser sintering 3D printer combines a 100 W CO₂ laser with a large build chamber (470×470×590 mm effective space) to deliver precise and durable components. Its dynamic focusing technology ensures uniform results, while adjustable layer thickness (0.06–0.2 mm) allows a balance between detail and productivity.
S480 Specifications
| Building Chamber size X*Y*Z(mm) | 480 × 480 × 600 |
| Effective Space Size X*Y*Z(mm) | 470 × 470 × 590 |
| Dimension of Main Machine W*D*H(m) | 1.60 × 1.48 × 2.09 |
| Dimension of Control Unit W*D*H(m) | 0.60 × 1.06 × 1.92 |
| Weight of Main Machine (kg) | 1,450 |
| CO2 Laser Powder (W) | 100 |
| Focusing | 3-axis, dynamic focusing |
| Building Speed (mm/h) | 10~25 |
| Layer Thickness (mm) | 0.06~0.2 Adjustable |
| Recommended Values 0.12 | |
| Diameter of Laser Beam (mm) | 0.31 |
| Maximum Scanning Speed (mm/s) | 21,000 |
| Maximum Operating Temperature (°C) | 230/160 |
| Powder Pyrometer Long Term Stability (°C/Year) | 0.1 |
| Powder Feeding type | Powder discharged upside |
| Powder fed both sides | |
| Data Format | STL |
| OS | Windows 10.0 |
| Data Processing Software | Voxeldance Additive -TPM3D Version |
| Options for Color of SLS Parts | White, Black or other colors |
| Auto Lock for Platform | Yes |
| Lifting Trolley | Manual |
| Active Cooling | Yes |
| Thermal Management for Control Cabinet | Chiller |
| Powder Recoater | Blade |
| Electrical Protection | PL-e Dual-channel security control |
| Nitrogen Generator | Integrated |
| Power | 380V, 3P/N/PE, 32A, 50/60Hz, Avg 3.5 kW |
See what the S480 can do for your applications -- contact us now.
S480 Applications
The S480 SLS 3D printing platform is ideal for:
- Automotive: Functional prototypes, tooling, and small-batch production.
- Aerospace: Lightweight, complex, and high-strength components.
- Medical Devices: Custom rehabilitation aids and orthopedic parts.
- Consumer Products: End-use components and rapid product development.
- Industrial Manufacturing: Jigs, fixtures, and production tooling.
Broad Material Compatibility
The S480 SLS 3D printer supports a wide range of high-performance polymer materials, including PA11, PA12, PA6X, PP, TPU, and reinforced composites. This allows the manufacturing of parts with tailored mechanical strength, heat resistance, and durability.

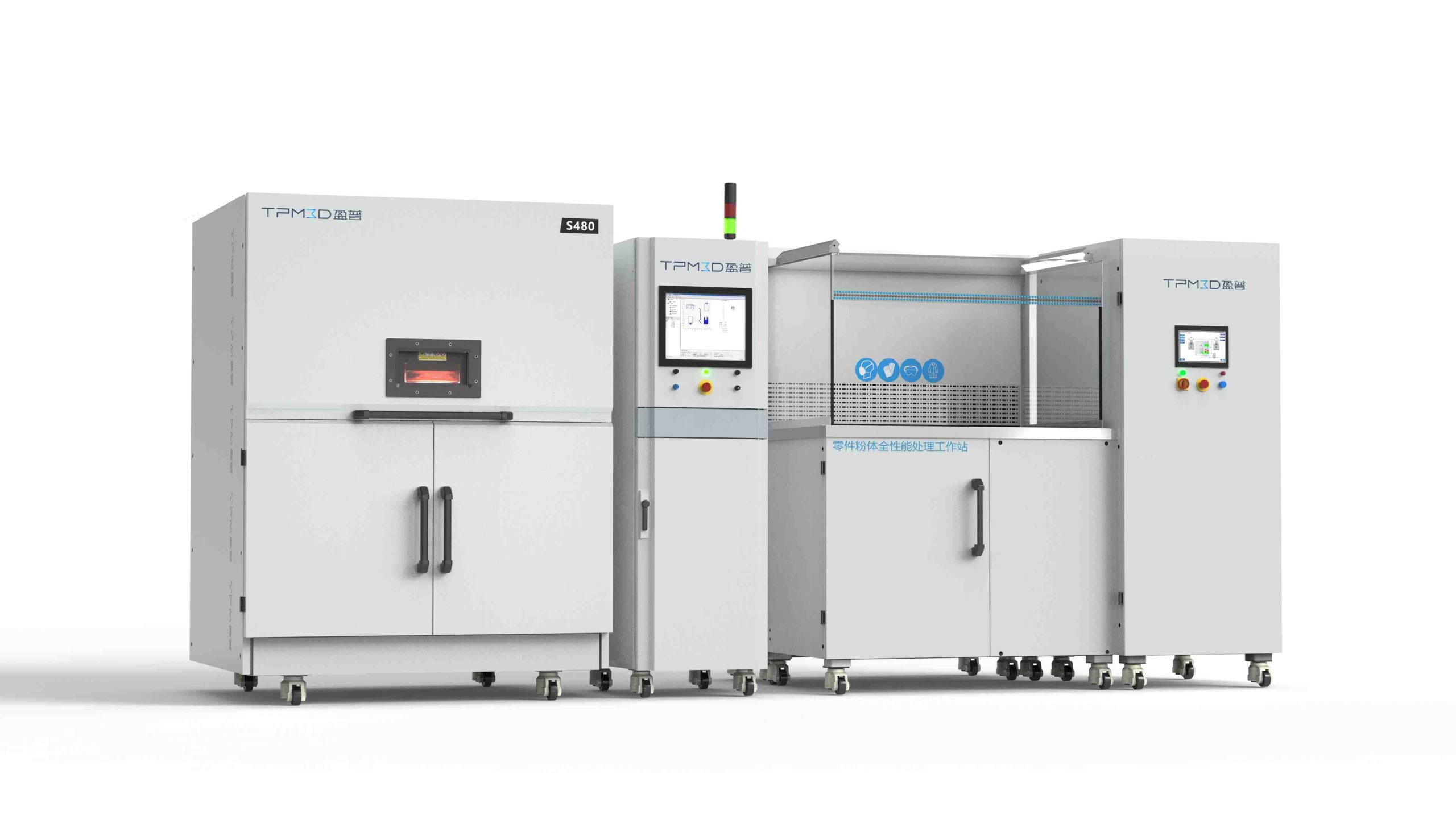

Seamless Integration with PPS
Combine the S480 with TPM3D’s Part & Powder Processing Station (PPS) for cleaner and more efficient production. PPS minimizes powder leakage, eliminates dust pollution, and optimizes post-processing—shortening production time and reducing operational costs.
