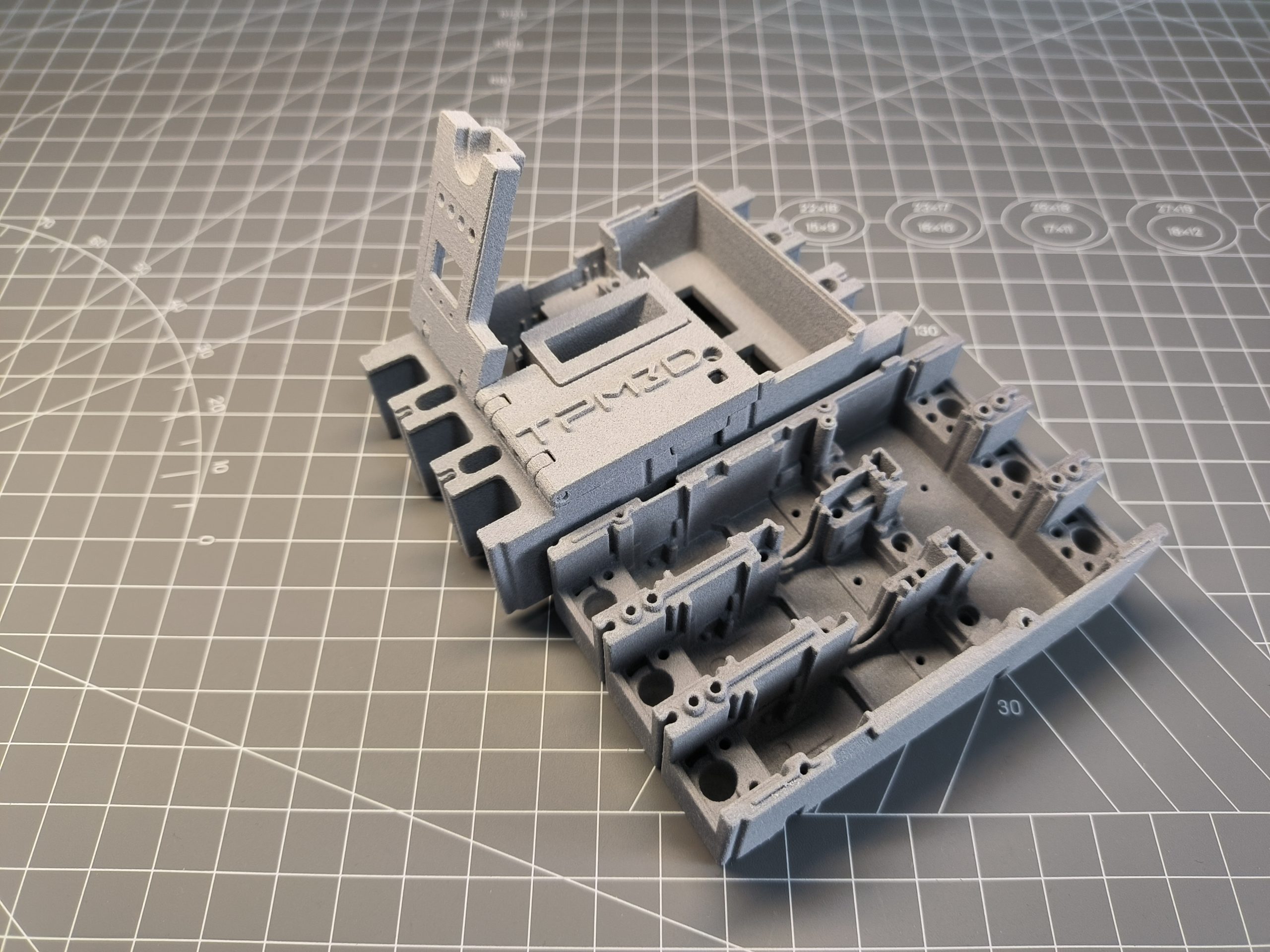

3D printed flame-retardant MCCB with nylon 12 material

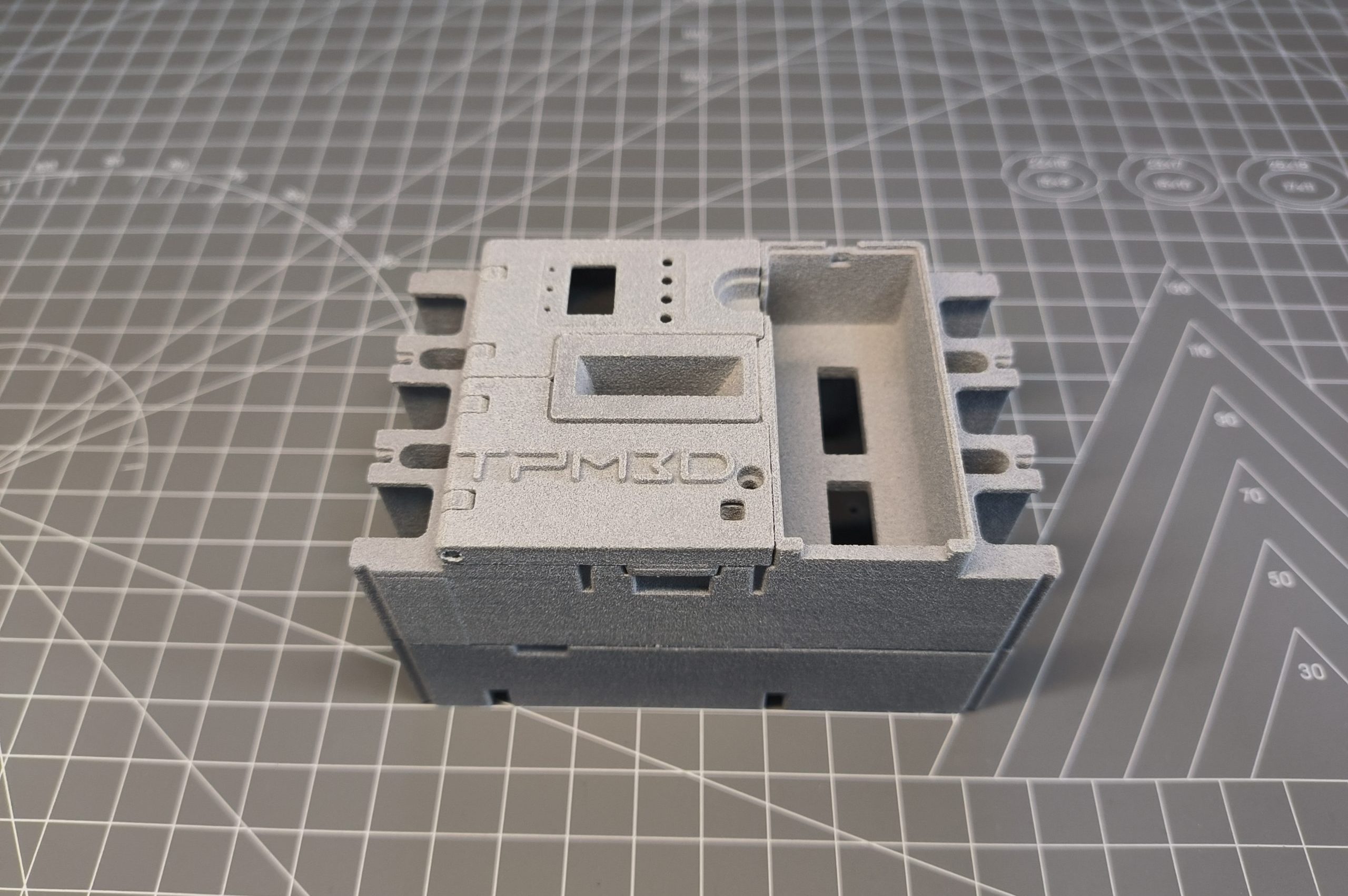

3D printed flame-retardant molded case circuit breaker

Precimid1171 GF30 FR BLK | Glass Filled, Flame Retardant Ash Black Nylon 12 Powder

Precimid1171 GF30 FR BLK is a high-performance, glass-filled nylon 12 powder engineered for SLS 3D printing. Featuring 30% glass reinforcement and UL94 V0 flame retardancy, it offers superior mechanical strength, exceptional rigidity, and high heat resistance. With a 40% refresh rate, it delivers both durability and cost-efficiency for demanding structural parts.

UL94 V0 Flame Retardant Rating: Meets rigorous fire safety standards for critical applications.
Glass Filled Nylon 3D Printing: Reinforced with 30% glass for enhanced stiffness and wear resistance.
Excellent Mechanical Properties: High flexural strength and tensile modulus ensure reliable performance.
High Heat Deflection Temperature: Maintains shape and strength in elevated temperature environments.
40% Powder Refresh Rate: Promotes sustainability and reduces material costs in production.

Get A Free Quote

Precimid1171 FR BLK Specifications

Mechanical properties	Test method	Metric
Part Color	Visual	Ash Black
Density	DIN 53466	1.25 g/cm³
Elongation at break	ASTM D638	2.6%
Flexural strength	ASTM D790	63 MPa
Flexural modulus	ASTM D790	2,800 MPa
Heart Deflection temperature 0.45MPa	ASTM D648	170 ℃
Heart Deflection temperature 1.82MPa	ASTM D648	133 ℃
Tensile strength	ASTM D638	40 MPa
Tensile modulus	ASTM D638	3,500 MPa
IZOD impact strength with notch	ASTM D256	18 J/M
IZOD impact strength without notch	ASTM D256	82 J/M

Why Choose Precimid1171 GF30 FR BLK for Glass Filled Nylon 3D Printing?

This glass filled nylon 12 powder is tailored for SLS 3D printing applications demanding flame retardancy, mechanical robustness, and thermal stability.

Get a Quote

Precimid1171 FR BLK Applications

Designed for demanding industrial and mechanical uses, Precimid1171 GF30 FR BLK is ideal for:

Structural Parts
High Rigidity Requirements
Wear-Resisting Assemblies
Tools and Mechanical Components

Seamless Compatibility with SLS 3D Printers

Designed for TPM3D’s SLS platforms, Precimid1171 GF30 FR BLK ensures high surface quality, consistent mechanical properties, and dependable accuracy. From one-off functional parts to high-volume production, it delivers the same reliable performance every time.
